S31-Full Automatic Bottle Shrink Wrapping Machine

FOB Reference Price:Get Latest Price
$9,500.00 - $11,000.00 / Set | 1 Set/Sets 1 set of shrink wrapping machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bags, Barrel, Bottles, Cans, Case, shingle
Packaging Material:
Plastic
Type:
Wrapping Machine
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
TNN
Model Number:
SPM-12
Power:
2KW
Voltage:
220V
Application:
Beverage
Weight:
0.5 mts
Automatic Grade:
Automatic
Certification:
CE
Driven Type:
Electric
Dimension(L*W*H):
1110mmx3800mmx2000mm
Packing Speed:
6-12 Pack/min
Power Supply, Heating power:
220V, 2KW
Air Pressure:
0.6 MPa
Dimension/ Thickness:
Max 600mm / 0.04-0.12mm
Net weight:
465kg
Max Packing Dimension:
L600 * W350 * H500
Horizontal Height of Feeding Conveyor:
800mm + - 50mm (Customizable)
Usage:
Water and beverage secondary packaging

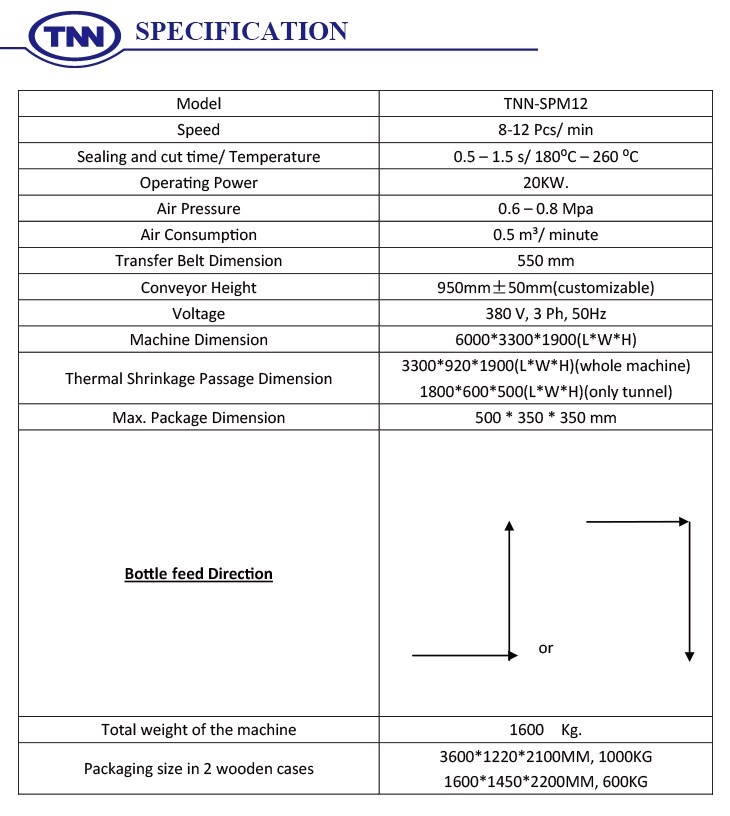

shrink wrapping machine Model:
TNN-SPM12
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Month * S31-Full Automatic Bottle Shrink Wrapping Machine
Packaging & Delivery
Packaging Details
shrink wrapping machine will be packed into standard wooden case,then one 40ft container loads 3 sets.
Port
Shanghai
Lead Time :
20 days

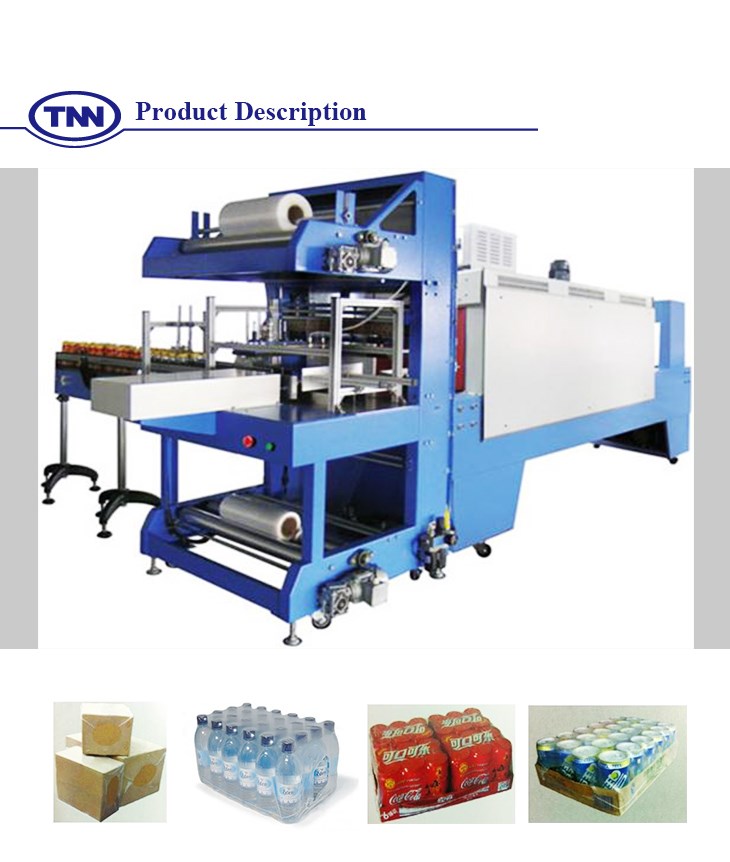

S31-Full Automatic Bottle Shrink Wrapping Machine



 1. L Type Shrink Wrapping Machine

The machine can be used for mineral water, drinks, beer, wine and medicine bottle’ group packing, which does not need bottom tray. Also, products will be firm and beautiful.

It adopts the imported PLC programming automatic control. It has stable function and precision control. It has automatic functions such as conveying materials, unscrambling, shrinking and cooling and design finalizing flow. The film conveying adopts imported transducer control in order to reach stepless speed conversion. It also has advanced spiral wind circulating structure and three-layer heat insulation to save resources. In addition, it uses enhanced cooling and design finalizing passage, which can make product packing finalize the design more effective, easy to be stored and transported.

It is widely used in mineral water bottles, pure water bottles, soft drink bottles, medicine bottles, food bottles and other containers. Production capacity range is 8-12packs/minute.

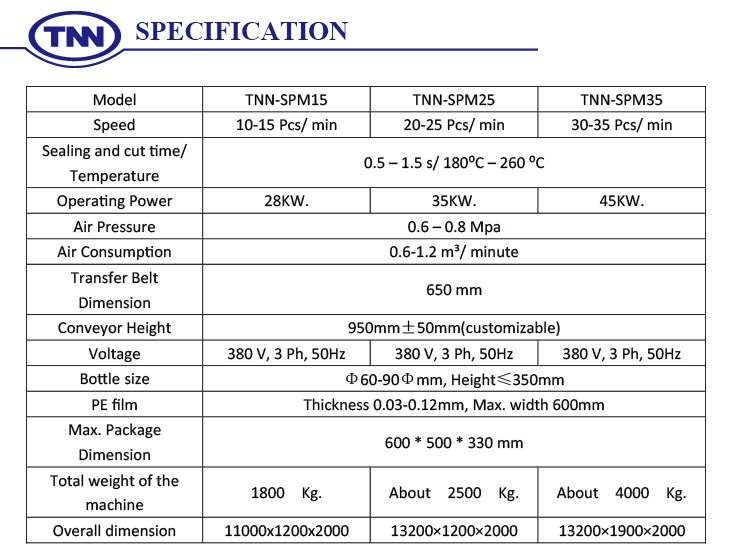

2. Linear Type Shrink Wrapping Machine

Compare to the L type shrink wrapping machine, this machine has higher production capacity.

We divided the linear type shrink wrapping machine into 3 stages, which is 10-15packs/minute, 15-25packs/minute and 25-35packs/minute. It can be widely used in many different fields as the best choice for secondary packaging.

All electric parts are famous imported brands such as  Mitsubishi, Schneider, Omron, Siemens, Autonics, Airtac, etc.

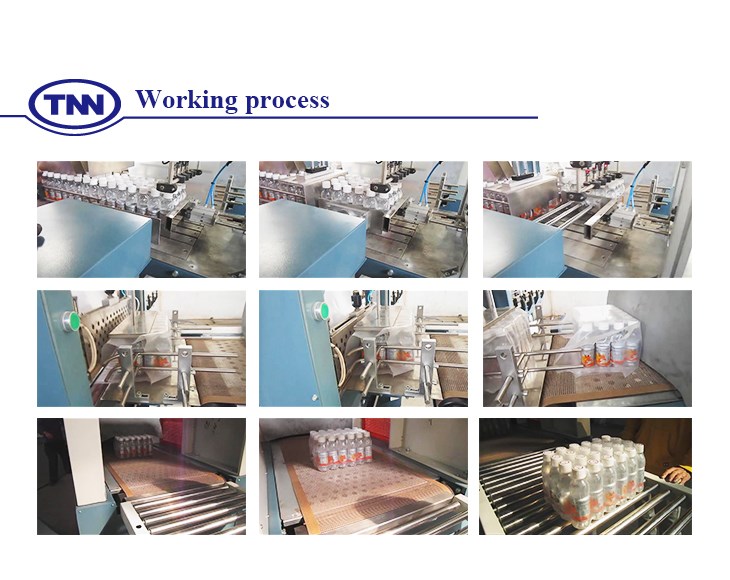

working process.jpgfreesparepart.jpg

Packaging & Shipping


Company Information


Other products

 related products.jpgWater Production line.jpg

FAQ



1. How many kinds of packing forms can shrink wrapping machine make?

Depending on customers' requirements. It can make diiferent sizes such as 4x6, 4x5, 3x4 and 2x3.

2. How much production efficiency of the machine?

We have L type shrink wrapping machine, capacity is 8-12packs per minute.

We also have Linear type shrink wrapping machine, capacity is 15-35packs per minute.

3. How long is the delivery time?

It will take 20-35days. Customers need to confirm bottle drawing as early as possible.

Customers need to provide adequate bottles for machine tests.

4. How to install?

We will send technicians to guide customer do installation and training, if customer require.

The installation takes 3-5days.

5. What guarantee can we provide?

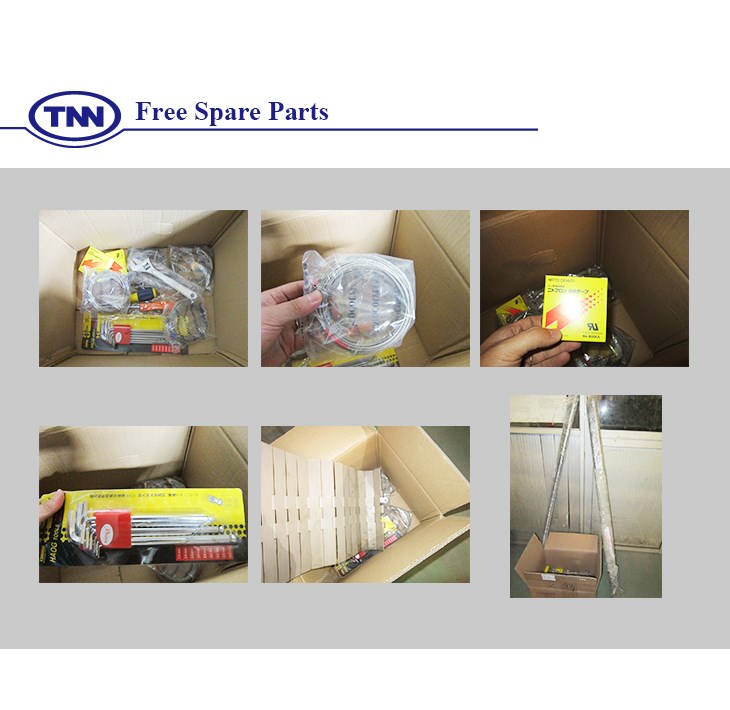

Free spare parts will be attached to each machine. It is adequate for one year's production.

We will send new parts within 72 hours if there is any part is damaged.

6. What is electricity supply requirement?

220V, single phase, 50/60Hz.

380V, 3 phase, 50Hz.

If your voltage is different from above, please let us know before place an order.
