3 in 1 Full automatic water filling machine

FOB Reference Price:Get Latest Price
$13,000.00 - $13,500.00 / Set | 2 Set/Sets 1set * water filling machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bottles
Packaging Material:
Plastic
Type:
Filling Machine
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
TNN
Model Number:
XGF Series
Power:
5KW
Voltage:
380V, 50Hz, 3 phase
Application:
Beverage
Weight:
2500kg
Automatic Grade:
Automatic
Certification:
CE
Driven Type:
Electric
Dimension(L*W*H):
2200X1800X2200MM
Controlling Type:
PLC
Cap Type:
Screw Plastic Cap
Container Type:
PET Bottle
Function:
Rinse / Fill / Seal
Automatic Degree:
Full automatic water filling machine
Suitable Liquid:
Water
Rinsing Material:
Sterilized Water
Speed Range:
2000BPH on 500ml basis
Washing Pressure (MPa):
0.25
Compressed Air Pressure (MPa):
0.3~0.7
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
200 Set/Sets per Year * 3 in 1 Full automatic water filling machine
Packaging & Delivery
Packaging Details
This 3 in 1 Full automatic water filling machine is packed into wooden boxes, then loaded into standard 20ft/40ft containers.
Port
Shanghai
Lead Time :
10-30days

3 in 1 full automatic water filling machine

water filling machine

A.full automatic function

B.free bottle, label design

C.2years guarantee

D.1year free parts



Water plant layout

 production line layout.jpg



Machine details

IWater treatment equipment

 1 machine detail 1

Application

water purification, before filling in the bottle

Capacity

1-20ton per hour

Processing included

Sand filter, Active carbon filter, Precision filter, high pressure pump, RO system, UV sterilizer, Ozone sterilizer and water tanks.



II. Blow molding machine

Option 1: HY Series semi automatic blow molding machine Click here to learn more


Application

To make PET plastic bottles

Model

HY Series

Bottle size

0.1-2.5L, 3-6L, 6-10L, 20L

Capacity

60-1500BPH



Option 2: TNN Series full automatic blow molding machine Click here to learn more

TNN-A2 full automatic blow molding machine-1_.jpg

Application

To make PET plastic bottles

Model

TNN Series

Cavity No.

2/4/6/8

Bottle size

0.1-2.0L, 3-10L

Capacity

800-9000BPH



III. Air conveyor

TNN air conveyor.jpg

Application

To transfer empty bottles to the 3-in-1 unit by wind

Conveyor height

1.25-1.50m

Bottle neck

28mm, 30mm, 38mm, etc

Bottle size

0.1-2.0L

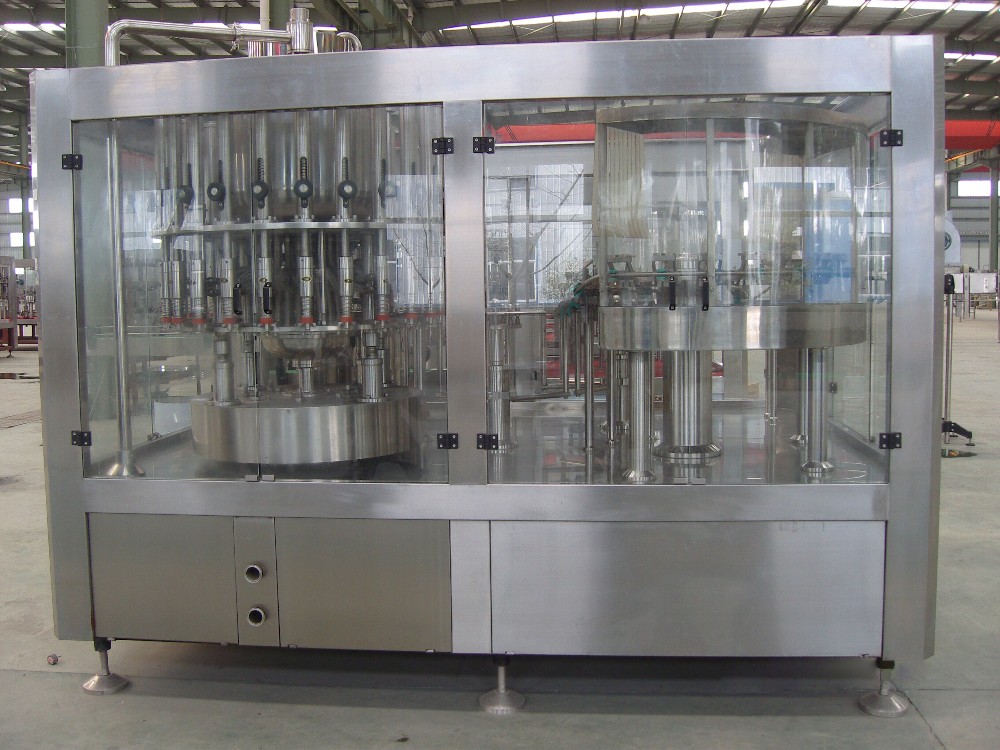

IV. Washing filling capping 3-in-1 unit  Click here to learn more

Application:  Washing, filling and capping the bottle, for automatic water filling machine.

3 TNN filling machine



Model

XGF8-8-3

XGF12-12-6

XGF18-18-6

XGF24-24-8

Rinsing head

8

12

18

24

Filling head

8

12

18

24

Capping head

3

6

6

8

Capacity

(based on 500ml)

2000-3000BPH

4000-5000BPH

6000-8000BPH

8000-10000BPH

Diameter of bottle

φ50-φ100mm

Height of bottle

160-340mm

Bottle volume

0.3-2.0L

Machine power

2.7 KW

3.5 KW

4.8 KW

5.8 KW

Power supply

380V 3 phase, 50Hz or customized

Weight

2100kg

2300kg

2800kg

4800kg

External dimensions

(L×W×H)

2100×1700×2100mm

2200×1800×2100mm

2400×1950×2100mm

3200×2100×2600mm



V. Inkjet Printer

TNN inkjet printer.jpg

Application

To print Production date and Expiry date on the bottle

Character height

1.2~15mm

Printing lines

1-2 lines (adjustable)

Power supply

AC 220V 50HZ, 1- phase

Total weight

120kg

Overall size

600×500×1250mm

Expiry date, Batch numbers, Logos, Automatic date, Time, Shift, Incremental numbering.



VI. Heat shrink sleeve labeling machine TNN-SLM Series  Click here to learn more

TNN sleeve labeling machine.JPG

Application

To sleeve and shrink labels on the bottle

Model

TNN-SLM Series

Bottle size

0.1-2.5L

Capacity

3,000-36,000BPH



VII. Automatic shrink wrapping machine TNN-SPM Series  Click here to learn more

Automatic shrink wrapping machine TNN-SPM Series.jpg

Application

To shrink packing certain numbers of bottles in a pack by PE film

Model

TNN-SPM Series

Bottle size

0.1-2.5L

Capacity

6-35packs per minute



VIII. Conveyor

TNN conveyor-1.jpg

Conveyor is used for connecting machines together and making them function well.

The width and height can be customized by client.



IX. PET preformbottle capPVC label, PE film

bottle cap TNN_.jpg



Warranty

2 years of quality guarantee period.

We will supply standard spare parts and accessories for all machines.

If there are any damaged spare parts or accessories, we will replace them by DHL express immediately for FREE OF CHARGE during the guarantee period.



Machine installation

We will send technicians to install the machine and teach your staff how to use it. All the cost should be paid by customers such as visa fee, round way air tickets, meals, accommodations and $80 per day for each technician.



Free Service

 Free bottle design

free bottle design TNN.jpg



Free label design

free label design TNN.JPG



FAQ



1. What kind of machine can we supply?

We can supply water filling machine.

2. How to get a quotation for a water filling machine?

Customers need to confirm following information first:

Bottle size? Production capacity? Labeling type? Packaging type?

3. How long is the delivery time?

It will take 45-60days. Customers need to confirm bottle drawing as early as possible.

Customers need to provide at least 100pcs preforms and caps for machine tests.

4. How to install?

We will send technicians to guide customers do installations and trainings, if customers require.

The installation takes 7-30days, depending on different capacities of production line.

Customers should prepare water and electricity, before technicians arrive at customer’s factory.
5. What guarantee can we provide?

Free spare parts will be attached to each water filling machine. It is adequate for one year's production.

We will send new parts within 72 hours if there are any parts damaged.

6. What is eletricity supply requirement?

220V, single phase, 50/60Hz.

380V, 3 phase, 50Hz.

If your voltage is different from above, please let us know before place an order.
